Disk Bays View

This View displays the disks configured in the Disk Layout Editor. The Bays are grouped by their row, colored by the batch color, and show the current status of the disk. If any operations are being performed on the disk the operation status and progress are displayed.

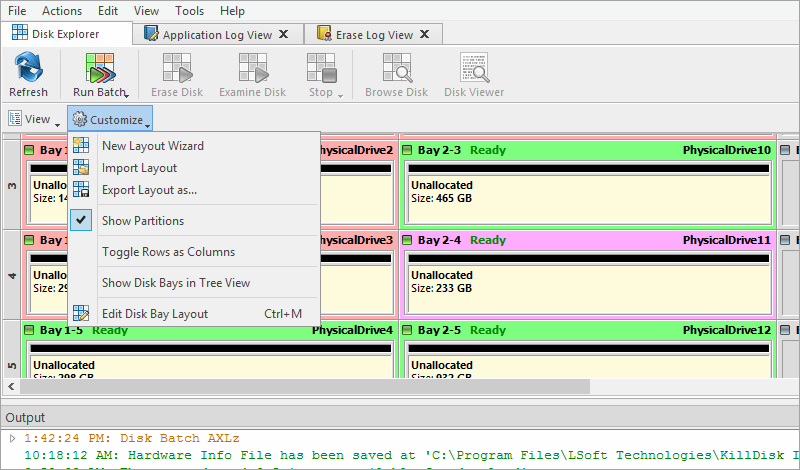

Figure 1: Disk Bays View

Customize menu

New Layout Wizard
Launches the Disk Bay Layout Wizard
Import Layout
Imports saved (exported) layout (*.dbl)
Figure 2: Disk Bay Layout Import
Export Layout as..
Exports custom (built) layout (*.dbl)
Figure 3: Disk Bay Layout Export
Show Partitions
Show or hide additional layout for partitions and volumes
Toggle Rows as Columns
This setting can be toggled on/off to display the rows (defined by the Disk Bay Layout) as columns in the Disk Bays View
Show Disk Bays in Tree View
Switches Disk Bays View to Tree View for user convenience and customization related to the one configured in Disk Layout Editor
Figure 4: Tree View Layout
Edit Disk Bay Layout
Opens Disk Layout Editor for current layout customization or creating a new layout
