Disk Bays View

Disk Bays view displays disks attached to bays and configured in the Disk Layout Editor. Bays are grouped by their row, colored by the batch color, and show disk information. During operations with a disk, the operation status and progress displayed on Disk Bay.

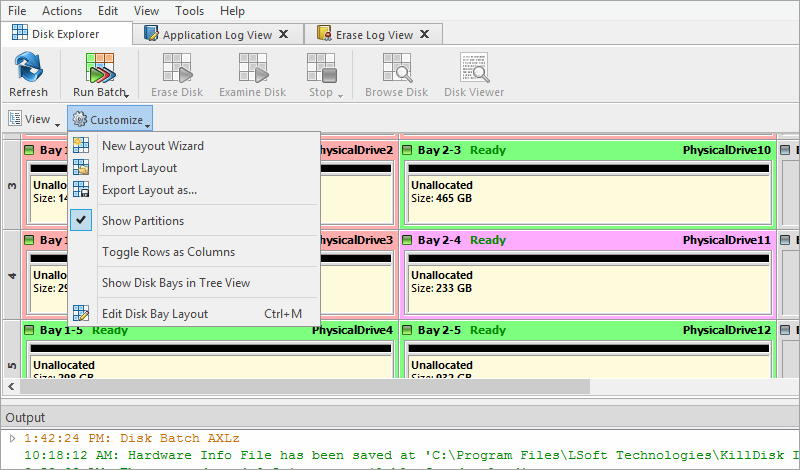

Figure 1: Disk Bays View

Customize menu

New Layout Wizard
Launches the Disk Bay Layout Wizard
Import Layout
Imports saved (previously exported) layout form file having .dbl extension
Export Layout as..
Exports custom layout to file having .dbl extension
Show Partitions
Show or hide additional layout for partitions and volumes
Toggle Rows as Columns
This setting can be toggled on/off to display the rows (defined by the Disk Bay Layout) as columns in the Disk Bays view
Show Disk Bays in Tree View
Switches Disk Bays view to tree view for user convenience and customization related to the one configured in Disk Layout Editor
Edit Disk Bay Layout
Opens Disk Layout Editor for current layout customization or creating a new layout
